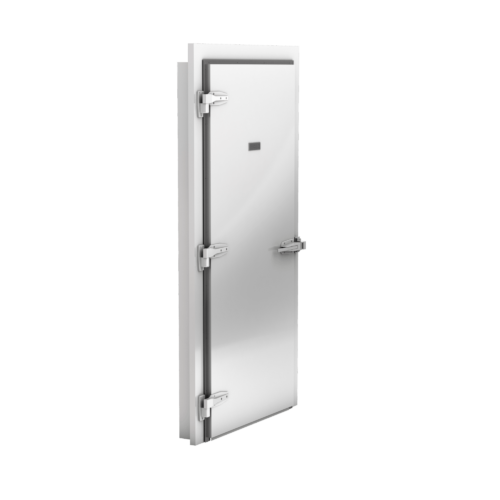

In-Fitting Door

Status: Stocking
Brand: Hercules
SKU code: Updating
GET A QUOTE

Product Highlights:

The HERCULES Series In-fitting Hinged cold storage door is a cold storage system that is available in multiple thicknesses, widths, and heights. It is also applicable to multiple building design applications. Hercules cold storage doors provide thermal performance of high R-value, superior airtightness and low thermal bridging, resulting in an energy cost savings of as much as 30% over traditional multi-part cold storage doors.

See more product details

Related products

Bamboo Sliding doors

The Bamboo Series Horizontal Sliding cold storage door is a versatile cold storage system available in multiple thicknesses (up to...

Bamboo Hinged Door

The hinged doors are characterized by a variable blade thickness ranging from 50 to 200 mm, ensuring thermal sealing for...

DoorHan RSD01BIW, Garage Sectional Door with Extension Spring Mechanism

The RSD01BIW residential sectional doors fit small door openings in garages and technical rooms, with widths from 2,000 to 3,500...

Overlap Swing Door

  The HERCULES Series Overlap Freezer cold storage door is a cold storage system that is available in multiple thicknesses, widths,...

Vertical Lift Door

The HERCULES Series Vertical Lift cold storage door is a cold storage system that is available in multiple thicknesses, widths,...

Horizontal Sliding Door

The HERCULES Series Horizontal Sliding cold storage door is a cold storage system that is available in multiple thicknesses, widths,...

Product Benefits

  • Quick and easy installation
  • Excellent thermal properties
  • Extensive range of options
  • Suitable for both interior and exterior applications
  • Available as two-panel or double hinged door for larger openings

Technical Specifications

Standard Sizes (Custom options available)​:

  • Height - 2' 6" - 8'
  • Width - 2' - 5' 6"
  • Thickness - 4", 6"

Internal Framing:

  • High Density Polyethlene

Metal/Finishes:

  • 24 Gauge white stucoo embossed galvanized steel
  • AZ50 Galvalume per ASTM-A792/A792M. SS Gr. 33
  • 24 gauge Stainless Steel

Options:

  • Stainless Steel finish
  • Stainless Steel hardware
  • Cooler & Freezer
  • Exit only hardware
  • Flush sill or High sill
  • Extra Heat
  • Solid Return Jambs with Inside(Back) Casings
  • Rainhood
  • Door Closer
  • Kick plates
  • Vision Window
  • Self-lubricating cam lift hinges raise the door when opened providing reduced friction on floor seal
  • Safety release latch allows the door to be opened from the inside even though padlocked from the outside

Thermal Performance

Thermal Properties:

  • R-Value - 33, 50
  • Insulation - Foamed-in-place polyiso CFC-free

Service & Warranties

Service:

Since its creation, HERCULES has been dedicated to serving its customers with products that satisfy the highest level of specification and which achieve all major international industry certification standards.

We have built our success on precise and timely response to customer needs, thanks to our dedicated and qualified personnel.

We deliver a full turn-key service, from the design stage through to after sales care, in our core markets, as well as in many export destinations around the world.

Warranties:

After 64 Years we know how to make a dependable door. That’s why we can offer the cold storage industry’s best warranty. Every door that leaves the HERCULES plant is available with a 5 year limited warranty against defects in both material and workmanship from the date of shipment. Simply stated it is the best warranty in the business.
