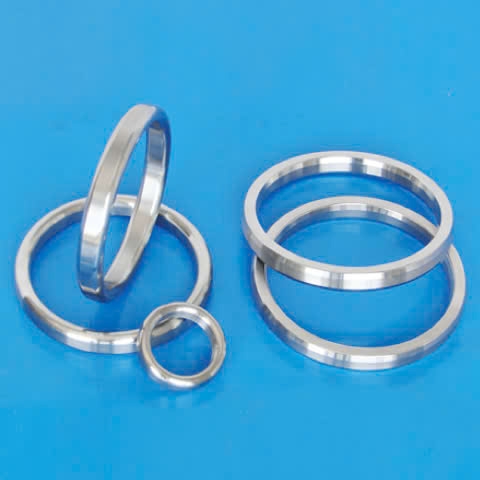

Valqua 550-ZSDX; Ring joint gasket, 1.1/2 inch; -1500lb; R20; Octagonal; SUS347; Uncoated

Valqua 550-ZSDX; Ring joint gasket, 1.1/2 inch; -1500lb; R20; Octagonal; SUS347; Uncoated

Status: Stocking
Brand: Bamboo
SKU code: 006001303801
GET A QUOTE

Product Highlights:

These gaskets are made of single metal to be used for pipe flanges in the lines handling high temperature & high pressure steam, as well as for ring joint flanges of valve bonnets.

  • Ring Joint Gasket is made of single metal to be used for pipe flanges in the lines handling high temperature & high pressure steam, as well as for ring joint flanges of valve bonnets.
  • It can reduce the strength of bolts and flanges compared to simple compressed metallic gasket.
  • No. 550-ZS is a metal ring with octagon shape. Size and material have standards according to JPI-7S-23 or ASME B16.20
  • Used for flange of ring joint face specified in JPI-7S-15, ASME B16.5, API SPEC 6A, MSS SP-44 and BS 1560, etc.

Product Details:

Applicable fluids

Water, Sea water, Hot water, Steam,Crude oil, Alcohol, Animal & vegetable oil, Heat transfer oilGeneral solvent, Weak acid, Weak alkali,Strong oxidizing acid, strong alkali,Air, Nitrogen gas, Inert gas,Exhaust gas,Inflammable gas,Poisonous,Oxygen,Extremely low temperature liquids,

Inappropriate fluid

Application

Widely used as gaskets for pipe flanges, pressure vessels, towers, tanks and valve bonnets for handling high temperature & high pressure steam, gas, oil and solvent used in oil refining, chemical, power and shipbuilding and the like.
Bamboo Industries See more Bamboo Industries Collapse
See more product details

Related products

Product catalog is updating

  • Products description

Manufacturing ranges

Dimensional standards
Dimensions specified in JPI, ASME, API, MSS and the like for ring joint flanges are our standard.

Max. hardness by material

Name

Max. hardness

(HB）
Low carbon steel 120
Pure iron 90
Copper 60
SUS304 160
SUS304L 150
SUS310S 160
SUS316 160
SUS316L 150
SUS321 160
SUS347 160
SUS430 170
5Cr-0.5Mo steel 130
Monel metal 140
Titanium 140
Aluminum 40
Nickel 120
