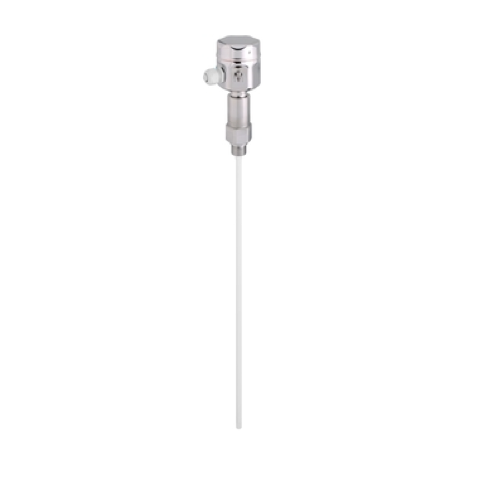

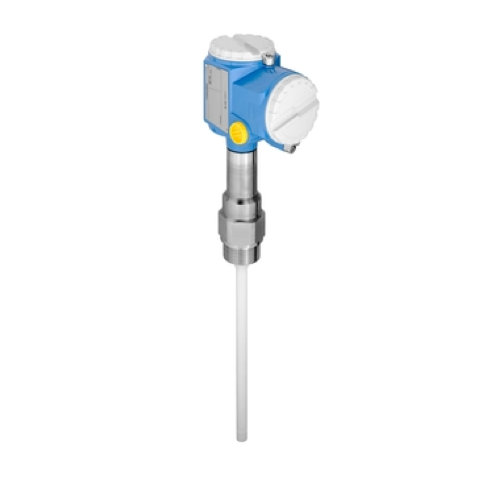

Endress+Hauser Liquicap FMI51 H2BARJA1A3A; Capacitance Level measurement; Pressure: Vacuum to +100bar; Measuring range: 0.1 to 4.0m; Temperature: -80 to +200°C

Status: Stocking

Brand: Endress+Hauser

SKU code: 020100000001

Use also in safety systems requiring functional safety to SIL2 in accordance with IEC 61508
Reliable and universal application thanks to wide range of certificates and approvals
No calibration necessary (factory preconfiguration). No calibration necessary for media with a conductivity of 100μS/cm and higher
Material in contact with the process made of corrosion-resistant material, FDA-listed materials
Menu-guided local configuration via plain text display (optional)
Two-stage overvoltage protection

Manufacture	Endress + Hauser
Origin	EU/G7
Model	FMI51 H2BARJA1A3A
Accuracy	Repeatablity 0,1%
Process temperature	-80°C...200°C -112°F...392°F
Process pressure/ max. overpressure limit	Vacuum ... 100 bar (Vaccum ... 1450 psi)
Max. measurement distance	0.1 m ... 4.0 m (0.3 ft ... 13 ft)
Main wetted parts Insulation material:	PTFE, PFA 316L
