  • Endress+Hauser Prosonic FMU40 SNB2A4; Ultrasonic measurement Time-of-Flight; Pressure: 0.7 bar-3 bar; Measuring range: 5m; Temperature: -40 °C ... 80 °C

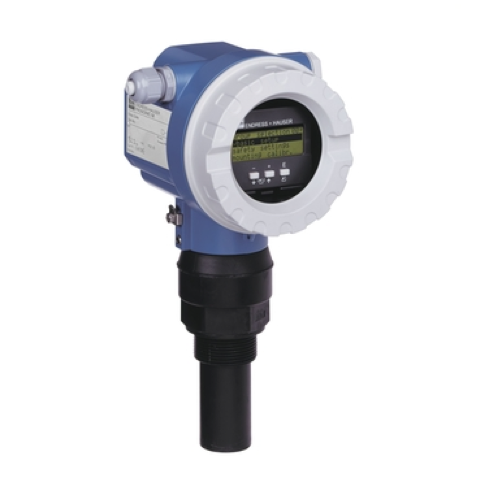

Endress+Hauser Prosonic FMU40 SNB2A4; Ultrasonic measurement Time-of-Flight; Pressure: 0.7 bar-3 bar; Measuring range: 5m; Temperature: -40 °C ... 80 °C
Endress+Hauser Prosonic FMU40 SNB2A4; Ultrasonic measurement Time-of-Flight; Pressure: 0.7 bar-3 bar; Measuring range: 5m; Temperature: -40 °C ... 80 °C

Endress+Hauser Prosonic FMU40 SNB2A4; Ultrasonic measurement Time-of-Flight; Pressure: 0.7 bar-3 bar; Measuring range: 5m; Temperature: -40 °C ... 80 °C

Status: Stocking
Brand: Endress+Hauser
SKU code: 020100000004
GET A QUOTE

Product Highlights:

  • Reliable non-contact measurement
  • Quick and simple commissioning via menu-guided on-site operation with four-line plain text display, 7 languages selectable
  • Envelope curves on the on-site display for simple diagnosis
  • Hermetically sealed and potted sensor
  • Chemically resistant sensor out of PVDF
  • Calibration without filling or discharging
  • Integrated temperature sensor for automatic correction of the temperature dependent sound velocity

Product Details:

Manufacture

Endress + Hauser
Origin EU/G7
Model FMU40 SNB2A4
Accuracy +/- 2 mm or +/- 0.2 % of set measuring range 1)
Process temperature -40 °C ... 80 °C (-40 °F ... 176 °F)
Process pressure/ max. overpressure limit 0.7 bar ... 3 bar abs (10 psi ... 44 psi)
Max. measurement distance Liquids: 5 m (16 ft), Solids: 2 m (6.6 ft)
Main wetted parts Insulation material: PVDF
Bamboo Industries See more Bamboo Industries Collapse
See more product details
