TONMATPAN P-PUR & GLASSWOOL WALL PANEL

Status: Stocking
Brand: Tonmat
SKU code: Updating
GET A QUOTE

Product Highlights:

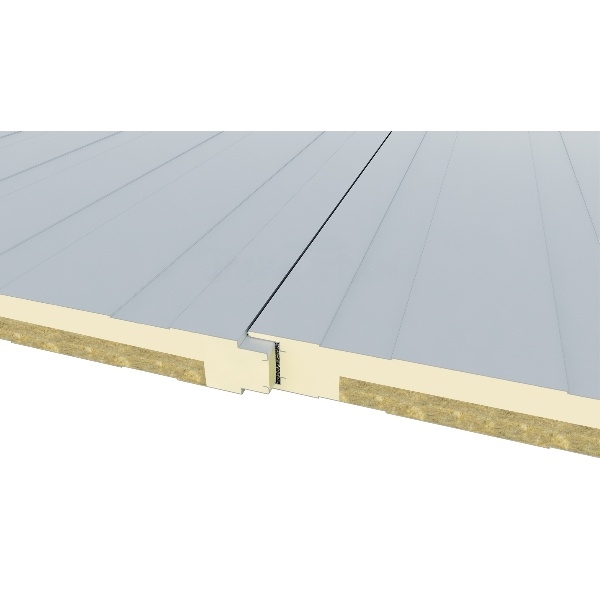

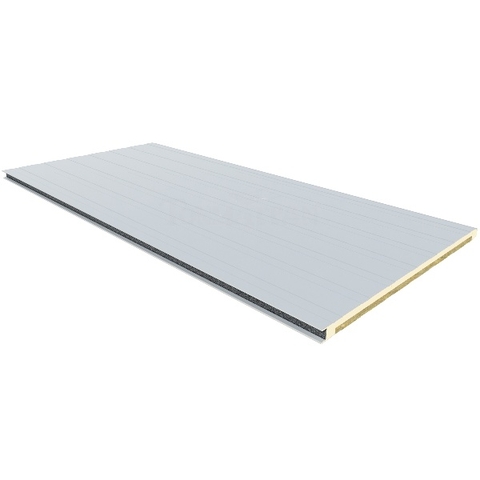

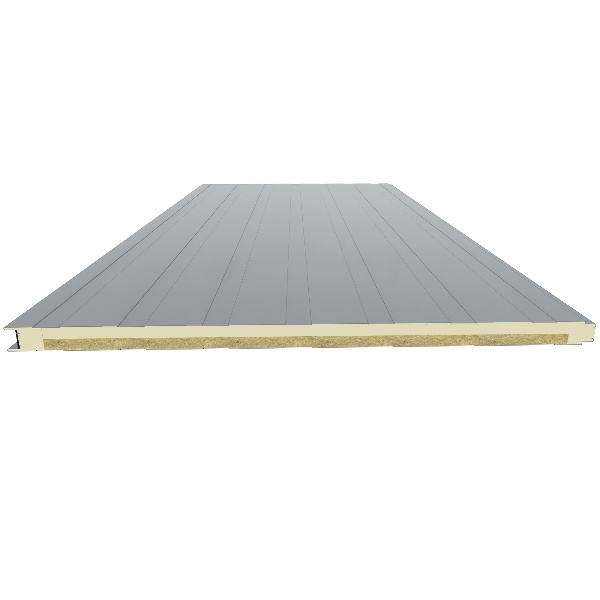

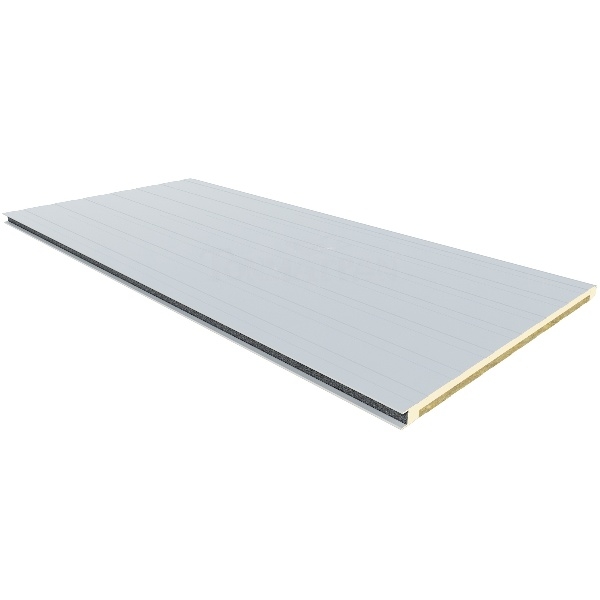

TONMATPAN P - PUR & GLASSWOOL is a wall panel line with both superior heat insulation and fire resistance. With a 2-sided structure of specialized, high-quality steel/stainless steel from Fujiton combined with a special core of PUR and Glasswool. The two ends of the panel are sealed with PU foam (Polyurethane) to help the core structure to be strong and durable.

Thickness:  40 - 200mm

Surface : flat, small ribs, large ribs depending on application location and customer needs.

The product is applied to projects with high requirements for both insulation and fire resistance.

OUTSTANDING ADVANTAGES

  • INSULATION
  • FIRE PROTECTION
  • NOISE CANCELLING
  • DURABLE

Product Details:

Criteria Unit Indoor Panel Exterior wall panels Tolerance
Length (Maximum) mm 18000 ±5
Effective size mm 1000/1120 1000 ±2
Product thickness mm 75/100/125/150/200 ±2
Middle layer density PUR kg/m³ 40 ±2
Glasswool 10 ~ 38
Surface metal thickness mm 0.30 ~ 0.80
See more product details
