Valqua 550-ZSDX; Ring joint gasket, 3 inch; -1500lb; R35; Octagonal; SUS347; Uncoated

Status: Stocking

Brand: Bamboo

SKU code: 006001303701

Product Highlights:

These gaskets are made of single metal to be used for pipe flanges in the lines handling high temperature & high pressure steam, as well as for ring joint flanges of valve bonnets.

Ring Joint Gasket is made of single metal to be used for pipe flanges in the lines handling high temperature & high pressure steam, as well as for ring joint flanges of valve bonnets.
It can reduce the strength of bolts and flanges compared to simple compressed metallic gasket.

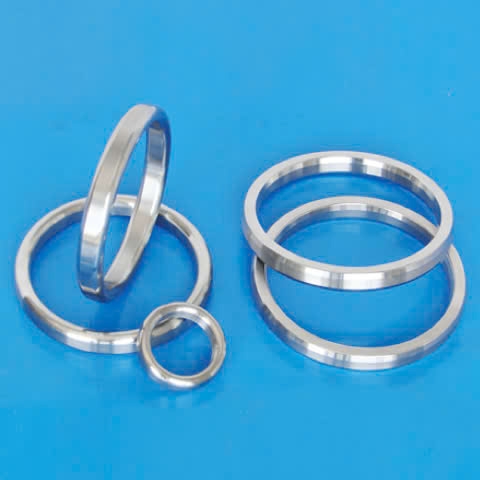

No. 550-ZS is a metal ring with octagon shape. Size and material have standards according to JPI-7S-23 or ASME B16.20
Used for flange of ring joint face specified in JPI-7S-15, ASME B16.5, API SPEC 6A, MSS SP-44 and BS 1560, etc.

Product Details:

Applicable fluids	Water, Sea water, Hot water, Steam,Crude oil, Alcohol, Animal & vegetable oil, Heat transfer oilGeneral solvent, Weak acid, Weak alkali,Strong oxidizing acid, strong alkali,Air, Nitrogen gas, Inert gas,Exhaust gas,Inflammable gas,Poisonous,Oxygen,Extremely low temperature liquids,
Inappropriate fluid
Application	Widely used as gaskets for pipe flanges, pressure vessels, towers, tanks and valve bonnets for handling high temperature & high pressure steam, gas, oil and solvent used in oil refining, chemical, power and shipbuilding and the like.

Collapse

See more product details

Manufacturing ranges

Dimensional standards

Dimensions specified in JPI, ASME, API, MSS and the like for ring joint flanges are our standard.

Max. hardness by material

Name	Max. hardness (HB）
Low carbon steel	120
Pure iron	90
Copper	60
SUS304	160
SUS304L	150
SUS310S	160
SUS316	160
SUS316L	150
SUS321	160
SUS347	160
SUS430	170
5Cr-0.5Mo steel	130
Monel metal	140
Titanium	140
Aluminum	40
Nickel	120
