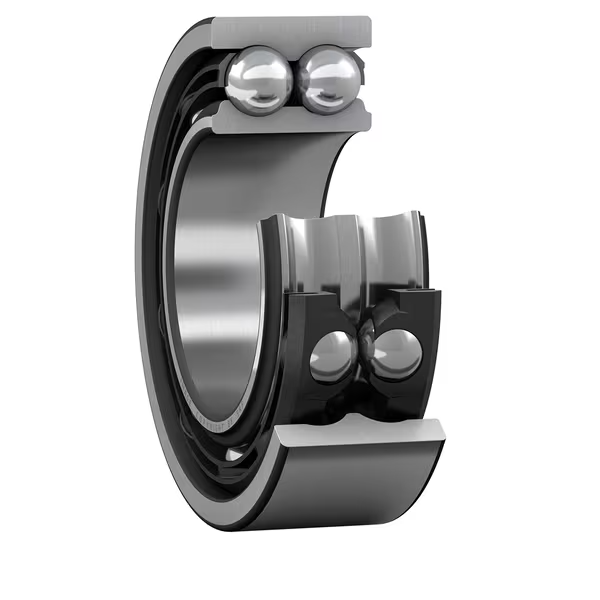

SKF 3205 ATN9; Double row angular contact ball bearing; 25x52x20.6mm; 0.169kg

Status: Lead time 6 weeks

Brand: SKF

SKU code: 011111300002

Product Highlights:

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings

Product Details:

Dimensions	Value
Bore diameter	25 mm
Outside diameter	52 mm
Width	20.6 mm
Contact angle	30 °
Properties	Value
Contact type	Normal contact
Number of rows	2
Ring type	One-piece inner and outer rings
Cage	Non-metallic
Arrangement of contact angle (double-row bearing)	Back-to-back (O)
Matched arrangement	No
Universal matching bearing	No
Axial internal clearance	CN
Material, bearing	Bearing steel
Coating	Without
Sealing	Without
Lubricant	None
Relubrication feature	Without
Performance	Value
Basic dynamic load rating	22 kN
Basic static load rating	15.3 kN
Reference speed	12 000 r/min
Limiting speed	12 000 r/min
SKF performance class	SKF Explorer
Logistics	Value
Product net weight	0.169 kg
