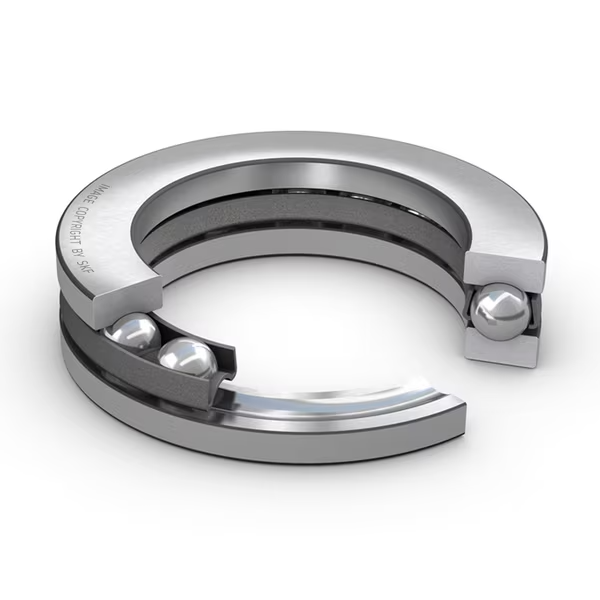

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
|
Dimensions |
Value |
| Bore diameter | 75 mm |
| Outside diameter |
100 mm |
| Width | 19 mm |
|
Properties |
Value |
| Axial load capability | Single-direction |
| Number of rows | 2 |
| Cage | Sheet metal |
| Housing washer type | Flat |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | Without |
|
Performance |
Value |
| Basic dynamic load rating | 44.2 kN |
| Basic static load rating | 134 kN |
| Reference speed | 3 200 r/min |
| Limiting speed | 4 300 r/min |
|
Logistics |
Value |
| Product net weight | 0.392 kg |
