TONMATPAN P-GLASSWOOL - GLW WALL PANEL

Status: Stocking
Brand: Tonmat
SKU code: 120604002001
GET A QUOTE
Thickness:

Product Highlights:

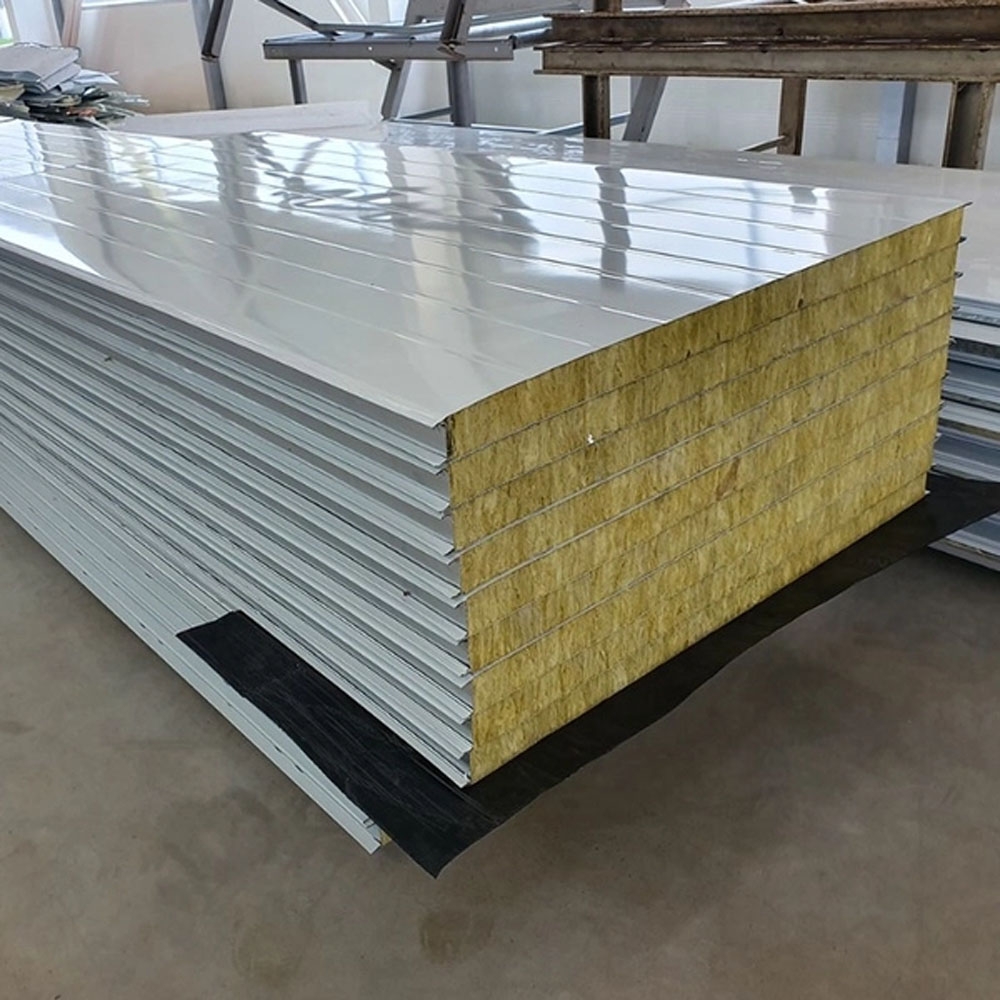

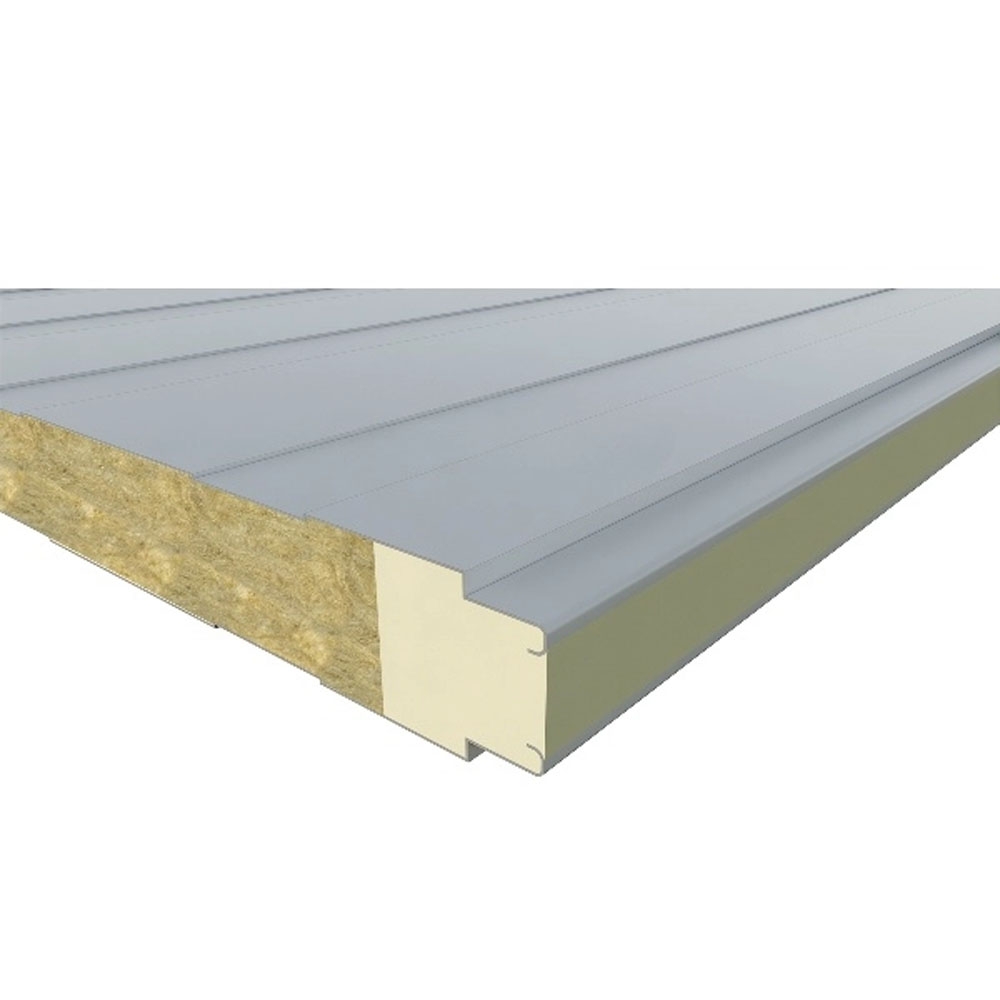

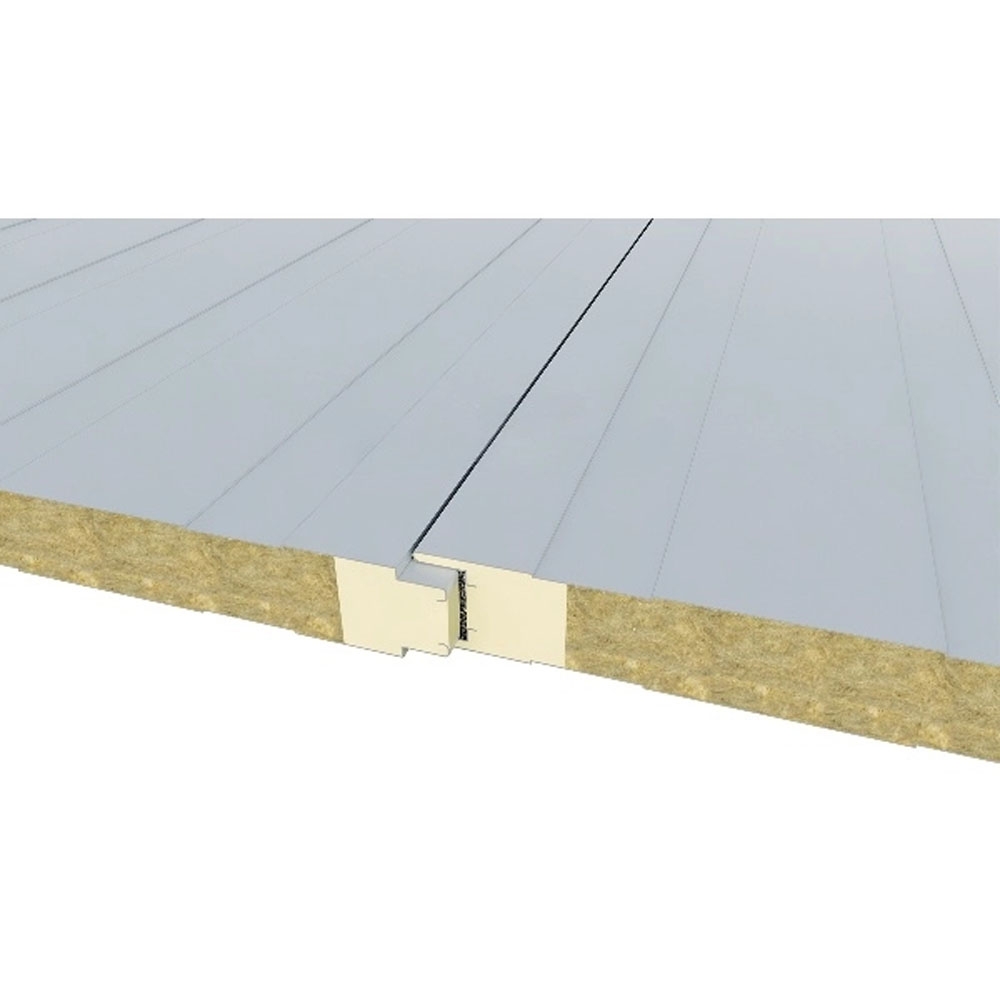

GLASSWOOL PANEL is the panel line with the best fire resistance. The product structure consists of 2 corrugated iron sides, the core layer is glass wool (Glasswool), the two ends of the panel are covered with PU foam (Polyurethane) to help the core structure to be strong and durable.

Surface : flat, small ribs, large ribs depending on application location and customer needs.

The product has a core of insulation and fireproof glass wool and 2 sides of specialized corrugated iron.

OUTSTANDING ADVANTAGES

  • INSULATION
  • FIRE PROTECTION
  • NOISE CANCELLING
  • DURABLE

Product Details:

Criteria Unit Indoor Panel Exterior wall panels Tolerance
Length (Maximum) mm 18000 ±5
Effective size mm 1120 1000 ±2
Product thickness mm 50/75/100 ±2
Insulation interlayer density kg/m³ 48/64 ±2
Surface metal thickness mm 0.35 ~ 0.80 ± 0.02
See more product details

Related products

TONMATPAN C-TRANMAT

TONMATPAN C-TRANMAT310 ceiling panel is a panel with a structure of 2 layers of corrugated iron combined with a PUR...

TONMATPAN G-GACHMAT ECO

GACHMAT ECO is a non-metallic panel with a structure of PUR (Polyurethane) ECO system insulation and soundproofing core combined with...

TONMATPAN G-GACHMAT PIR

TONMATPAN G - GACHMAT PIR is a non-metallic panel with a 3-layer structure, 2 outer layers covered with specialized cement...

TONMATPAN G-GACHMAT PUR

TONMATPAN G - GACHMAT PUR is a non-metallic panel with a structure of PUR (Polyurethane) insulation and soundproof core combined...

TONMATPAN P-PUR & GLASSWOOL WALL PANEL

TONMATPAN P - PUR & GLASSWOOL is a wall panel line with both superior heat insulation and fire resistance. With...

TONMATPAN P-XPS - XPS INSULATION FOAM WALL PANEL

XPS insulation foam panels are a popular panel product line for walls and ceilings in industrial buildings such as factories, offices,...

TONMATPAN P-EPS EPS WALL PANEL

EPS Panel is a popular insulation panel for walls and ceilings in industrial buildings such as factories, temporary offices, warehouses, etc....

What is Glasswool Panel?

Glasswool panel or also known as glass wool panel is a material made from synthetic fiberglass extracted from natural materials such as clay, stone, slag, etc. Because it is made from soil and rock, this glass wool has components including metal oxide, calcium silicate and Aluminum,...

Glass wool is often used for wall cladding in the house to help soundproof effectively. In addition, this product is also used in karaoke bars, bars, dance clubs, recording studios,...

Structural characteristics of Glasswool Panel

Glasswool Panel (glass wool) consists of 2 main components:

- Core: The core is the glass wool part made from small glass fibers.

- Outer part: The outer part is covered with a layer of corrugated iron whose main function is to shape and protect the cotton layer while helping to resist negative external impacts such as humidity or temperature.

In addition, this metal layer also has a protective electrostatic paint layer that increases resistance to external impacts.

Outstanding advantages of Glasswool Panel in construction

It is not by chance that glass wool panels are very popular in construction projects today. Below are the outstanding advantages of this special panel line.

- High durability

Glasswool Panel  is made from inorganic materials so it is extremely durable. You can use this product for a long time without worrying about damage or wear. This is a suitable product for those who want to optimize costs during the construction process.

Good insulation, soundproofing and fire resistance

Similar to Rockwool panel ,  this glass wool core panel has excellent sound insulation, heat insulation and fire resistance. Glass wool fibers can withstand temperatures up to 120 degrees Celsius.

Thanks to this advantage, Glasswool panels are almost non-flammable and do not cause fires or produce toxic gases if a fire occurs. With such good fire resistance, sound insulation and heat insulation, this product is very popular in bars and nightclubs.

- Easy construction and installation

In addition to the advantages of physical properties, glass wool panels also impress users with their simple construction process, easy and quick installation process. You will not need to spend too much time to be able to join the panels together and install them in construction works.

- Replacement and disassembly are very simple

In addition to easy and quick construction and installation, glass wool panels are also very easy to replace and disassemble. Compared to other products, you have to spend a lot of time to dismantle, but with this glass wool panel, this looks different and simple.



Whenever you want to replace a few fiberglass panels or want to demolish the whole thing, you can do it quickly without spending too much manpower and effort.

 - Surface is difficult to stain and mold resistant

Because the glass wool panel has a metallic coating with electrostatic paint and a flat surface structure, it is extremely easy to maintain and clean. With such an outer coating, this product is also very difficult to get dirty and does not get moldy.

- High aesthetics

When it comes to glasswool panels, we cannot help but mention its aesthetics. This is a product line that can bring extremely high aesthetics. With the outer layer painted with electrostatic paint, you can choose the color that best suits your project.

Notes when constructing and preserving Glasswool panels

To use Glasswool glass wool panels effectively, you need to note the following during construction and product preservation.

During construction

To construct Glasswool glass wool panels with the highest thermal insulation efficiency, you need to carefully read the information on how to use and issues surrounding the construction to ensure safety.

The reason is because fiberglass has a lot of small dust that can fly into the air and cause itching. Therefore, during use, remember to use protective gear such as glasses, gloves, masks, and protective clothing to avoid getting cotton fibers on your body.



Besides, you absolutely must not damage or hit the fiberglass strongly, causing dust to spread into the air, causing adverse effects on the respiratory tract and skin diseases.

When the construction is finished, you should also dispose of the fiberglass properly, do not throw it into the environment as it will adversely affect the health of others as well as the surrounding environment.

When storing

During the process of preserving glass wool panels, you also need to pay attention to the following:

- Glass wool panels should be stored in a cool, spacious place.

- Avoid placing glass wool panels in places that are flammable or explosive such as gasoline, fire, or electricity.

- When storing, use plastic or wooden pallets to place the panels on and line them with foam or paper to prevent scratches and fading.

- When loading glass wool panels onto trucks or containers, you should apply the following measures such as placing the required quantity (usually 20 panels per truck), lifting the goods with a forklift to avoid bending the product, and carefully closing the door before the truck rolls and ensuring that the product does not vibrate.
