TONMATPAN P-ROCK WOOL PANEL

Status: Stocking
Brand: Tonmat
SKU code: 120603002001
GET A QUOTE
Thickness:

Product Highlights:

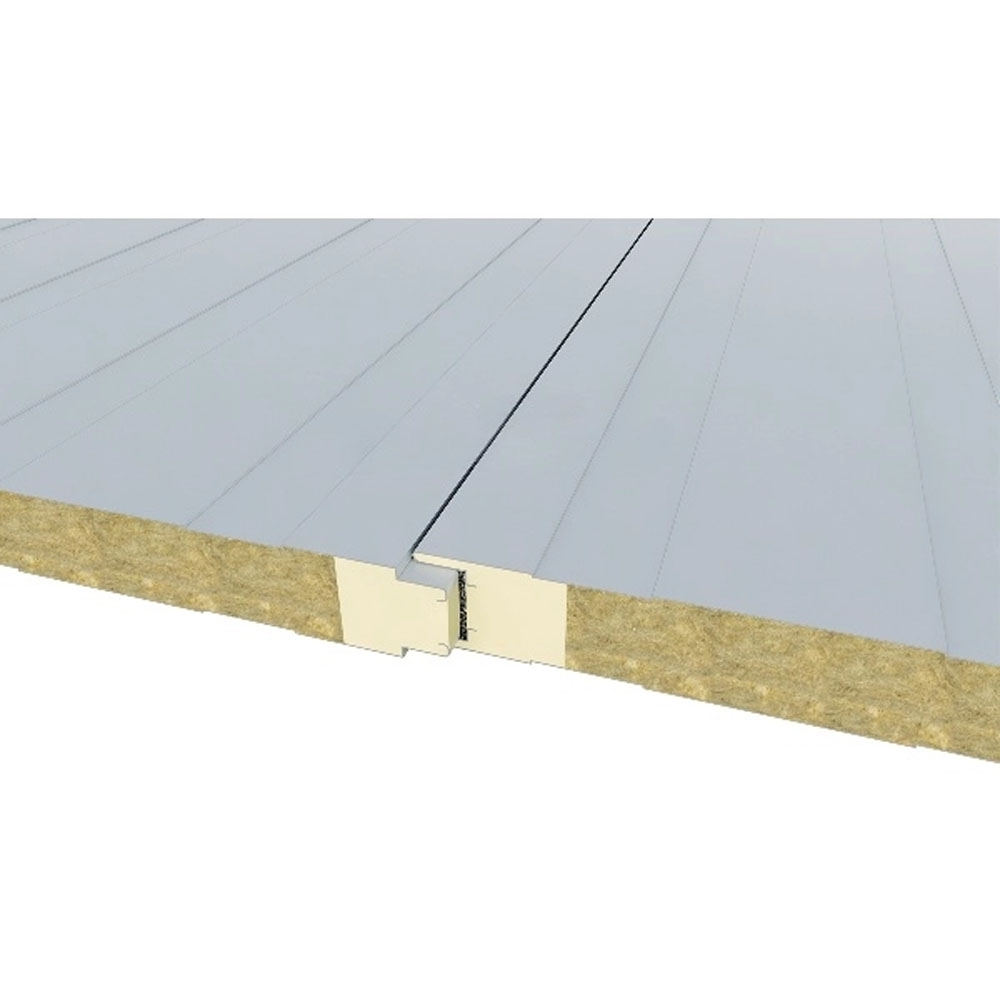

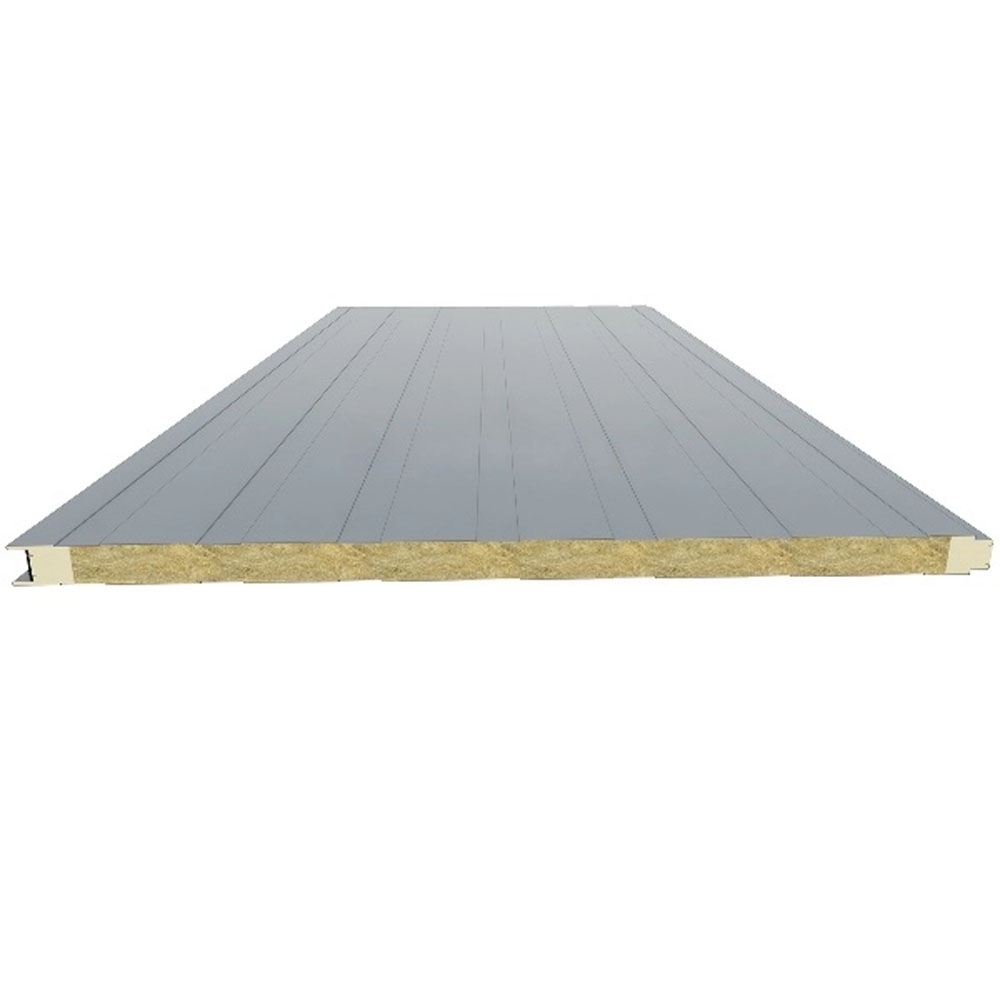

Material: Rock wool, is the material with the best fire resistance. The product structure consists of 2 corrugated iron sheets, the core layer is mineral wool, the two ends of the panel are covered with PU foam (Polyurethane) to help the core structure to be strong and durable.

Surface : flat, small ribs, large ribs depending on application location and customer needs.

Application: is a type of panel with good fire resistance, the surface is made of corrugated iron or stainless steel with a variety of colors, has high aesthetics, so it is suitable for projects such as commercial centers, ...

OUTSTANDING ADVANTAGES

  • FIRE PROTECTION
  • EASY TO CONSTRUCT
  • DURABLE
  • QUICK INSTALLATION

Product Details:

Criteria Unit Indoor Panel Exterior wall panels Tolerance
Length (Maximum) mm 18000 ±5
Effective size mm 1120 1000 ±2
Product thickness mm 50/75/100 ±2
Insulation interlayer density kg/m³ 60 ~ 130 ±2
Surface metal thickness mm 0.35 ~ 0.80 ± 0.02
See more product details
