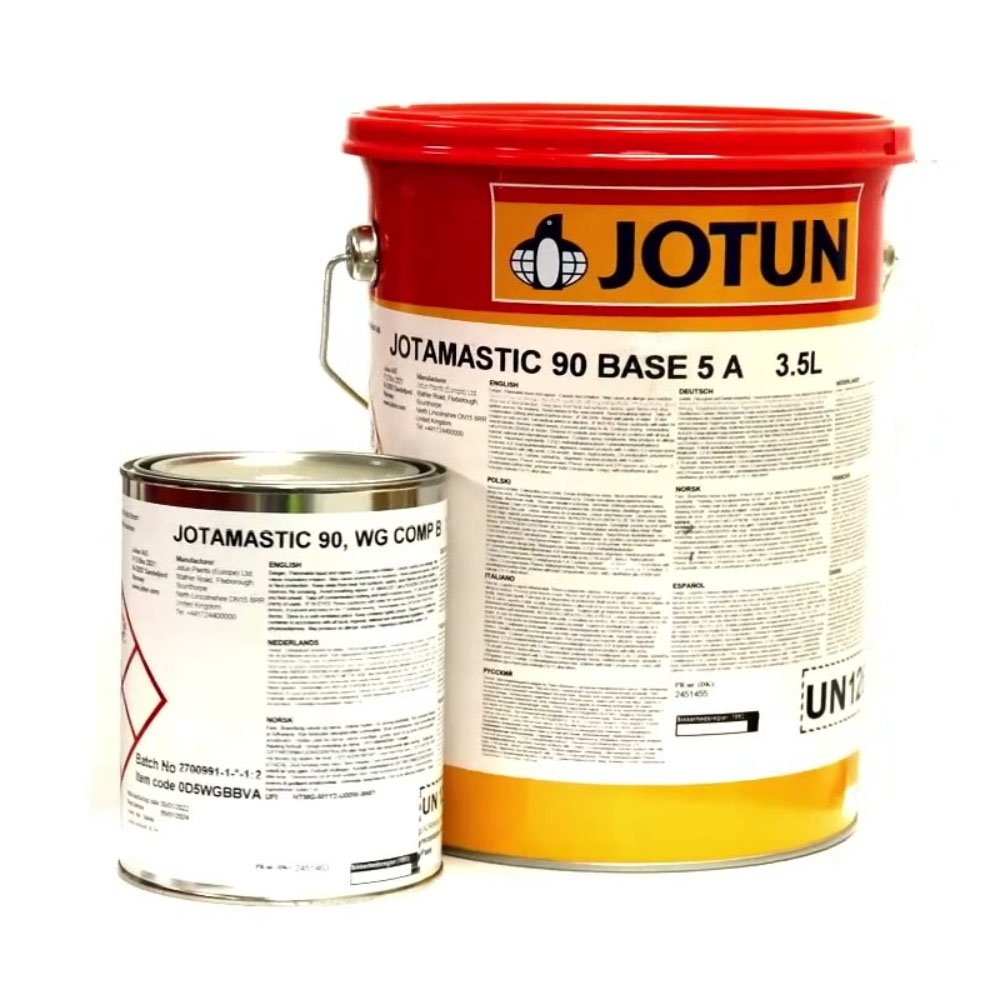

Jotun Jotamastic 90 Glassflake industrial paint is a two-component polyamine-cured epoxy mastic paint. This type of paint has high solid content, good abrasion resistance, does not require much surface cleaning and can be painted at high thickness. There are two types of curing agents depending on the surface temperature: standard and cold climate types. This product is part of a complete paint system that is certified as non-flammable
Jotun Jotamastic 90 Glassflake is a two-component polyamine cured epoxy mastic paint. This type of paint has high solid content, good abrasion resistance, does not require much surface cleaning and can be painted at high thickness. There are two types of curing agents depending on the surface temperature: standard and cold climate types. This product is part of a complete paint system that is certified non-flammable
This product can mix many colors in the Jotun Industrial Automatic Color Mixing System. Note that there may be slight color deviations when changing the curing agent.
Used for iron and steel in locations where bead blasting cannot be applied or for surfaces prepared by ultra-high pressure water washing. Can be used alone or in combination with other primers and topcoats. This paint provides excellent corrosion resistance in both seawater and freshwater environments. If exposed to sunlight, there is a possibility of chalking.
Standard Curing Agent: Minimum Maximum Standard
Thickness, dry (μm) 100 300 125
Thickness, wet (μm) 125 375 155
Theoretical rate (m2/l) 8 2.7 6.4
Cold climate hardener: Minimum Maximum Standard
Thickness, dry (μm) 100 300 125
Thickness, wet (μm) 125 375 155
Theoretical rate (m2/l) 8 2.7 6.4
Color Many colors to choose from on the automatic color mixing system (MCI)
% volume solids* 80 ± 2 Standard curing agent
80 ± 2 Cold climate curing agent
Flash Point Standard Curing Agent: 35oC ± 2 (Setaflash)
Cold climate curing agent: 35oC ± 2 (Setaflash)
Standard Curing Agent VOC Viscosity:
2.25 lbs/gal (270 gms./ltr.) USA-EPA Method 24
170 gms/ltr UK-PG6/23(97). Appendix 3
Curing agent in cold climates:
1.84 lbs/gal (220 gms./ltr.) USA-EPA Method 24
180 gms/ltr UK-PG6/23(97). Appendix 3
Shadow Shadow
Average gloss durability
Water resistance Excellent
Resistance to abrasion Very good
Good solvent resistance
Resistance to chemicals Very good
Good elasticity
* According to ISO 3233:1998 (E)
According to Hong Kong law: Type of paint applied – Paint used for boats; VOC 270 gms/ltr HK EPD; Compound exemption – None; Specific gravity: 1.43 (A+B); The above VOC and Specific Gravity values are typical values only, they may vary depending on the color.
Surface Preparation
The surface must be clean and free from contaminants. The surface must be treated according to ISO 8504.
Untreated steel surface
Cleanliness: Clean the area with a mechanical machine to meet minimum standard St 2; no rolling scales are left (ISO-8501-1:2007). Higher surface preparation (blasting to Sa 21⁄2) will increase the effectiveness of the paint film. If applying the Super High Pressure Water Blasting method, the cleanliness level must reach at least moderate level according to SSPC and NACE standards.
Suitable temporary anti-rust primer surfaces must be clean, dry and undamaged.
Old painted surface
The appropriate anti-rust coating must be clean, dry and undamaged. Please contact Jotun for further advice. When applying maintenance paint, the surface can be prepared by super high pressure water spraying to level WJ2 (NACE No.5/SSPC-SP 12) or cleaned with a mechanical machine to meet minimum standards St 2 for the area. rust area.
This type of paint can also be used on other types of surfaces. Please contact Jotun office for more details.
Conditions in the Jotamastic 90 industrial painting process
The minimum surface temperature must reach +5°C (standard) (-5°C for WG) and must be at least 3°C higher than the dew point of the air, ambient temperature and humidity measured at the site. area around the surface. When applying in a closed area, there must be good ventilation to ensure the drying/curing process.
Surface preparation by Ultra High Pressure Water Spraying will create a damp surface. The ambient humidity should not exceed 85%. Before painting, the surface should not be completely covered with moisture, only streaks are acceptable.
Use high pressure paint machine
Brush Only used when applying paint and painting small areas, care must be taken when painting to achieve the specified dry thickness.
Roller Can be used for small areas but should not be used to apply the first coat of anti-rust paint , take care while painting to achieve the specified dry film thickness.
Mixing ratio (volume) Standard hardener: 3.5:1
Cold climate hardener: 3.5:1
Mixing 3.5 parts Part A (Paint) mixed thoroughly with 1 part Jotamastic 90 Part B (Curing Agent).
Pot life (23°C) Standard hardener: 2 hours
Curing agent in cold climates: 45 minutes
Jotun Thinner No. thinner/cleaner. 17
Instruction data for high pressure paint sprayers
Pressure at spray gun tip 15 MPa (150 kp/cm2, 2100 psi).
Nozzle size 0.46-0.79 mm (0.018-0.031″)
Spray angle 40-80°
Filter Make sure the filter is clean.
Instruction data for conventional paint sprayers
Note
*The temperature of Jotamastic 90 paint after mixing must reach at least 10°C. If lower, it is necessary to add solvent to ensure the paint has appropriate viscosity.
* Adding too much solvent will reduce the flow resistance and slow down the curing time of the paint film.
* Only mix solvent after thoroughly mixing the two paint components.
Special Note for the US Market: When applying in the US, use Cold Climate Curing Agent only when the temperature is below 15°C. Reason: The standard curing agent has been modified to meet local laws.
1. The earliest possible time at which the paint film can withstand light mechanical impact such as walking on the paint film.
2. This is the earliest time for recoating with the same type of paint. Note that at this point, the paint film is not hard enough to withstand mechanical impacts or for moving/transporting.
3. To achieve the best adhesion, the paint surface must be clean and free of chalk before coating and when applying the next layer before the paint film is completely cured. If the paint film is exposed to direct sunlight for a certain period of time, care should be taken in cleaning the surface and removing or sanding the hard surface layer to achieve high adhesion.
The above parameters are for guidance only. Actual drying time before applying the next coat may be shorter or longer depending on the paint film thickness, ventilation, underlying paint system, requirements for early assembly transportation, etc. Drying time for a complete paint system is mentioned in detail in each separate system table, which has been calculated including the parameters and specific conditions.
Jotamastic 90 2 x 125 μm (Dry Film Thickness)
Hardtop AS/XP 1 x 50 μm (Dry thickness)
Other paint systems may be specified, depending on intended use.
Preserving Jotun Jotamastic 90 paint
This product should be stored in accordance with the safety regulations of each country. It is best to store the product in a cool, dry place with good ventilation. Keep away from heat sources and ignition sources. The product container must be tightly closed.
Transport
Handle with care. Stir well before use.
Packaging size of Jotamastic 90 industrial paint
20 litre kit: 15.6 litres Comp. A (base) in a 20 litre pail and 4.4 litres Comp. B (curing agent) Jotamastic 90 in a 5 litre pail.
4.55 liter set: 3.55 liters Part A (Paint) in a 5 liter container and 1 liter Part B (curing agent) Jotamastic 90 in a 1 liter container.
Health and safety See safety notice on paint can. Use in well-ventilated conditions. Do not breathe vapor or spray. Avoid contact with skin. If contact occurs with skin, use soap, water or appropriate detergent to wash off immediately. If in eyes, wash with clean water and seek medical attention immediately.
For further details on health and safety effects and safety recommendations when using this product, see further details in the Product Safety Data Sheet.
The information in this Jotun Industrial Paints product specification sheet is the best knowledge of the Manufacturer based on practical testing and experience. However, in practice the product may be used under conditions beyond the control of the Manufacturer, so we can only guarantee the inherent quality of the product. The Manufacturer reserves the right to change the given parameters without prior notice. The product may be subject to minor changes to meet the requirements of the country of origin. If there is a conflict between the English and Vietnamese languages in the product specification sheets, the English language sheet will be considered as the Manufacturer's technical specification sheet with the correct information.
