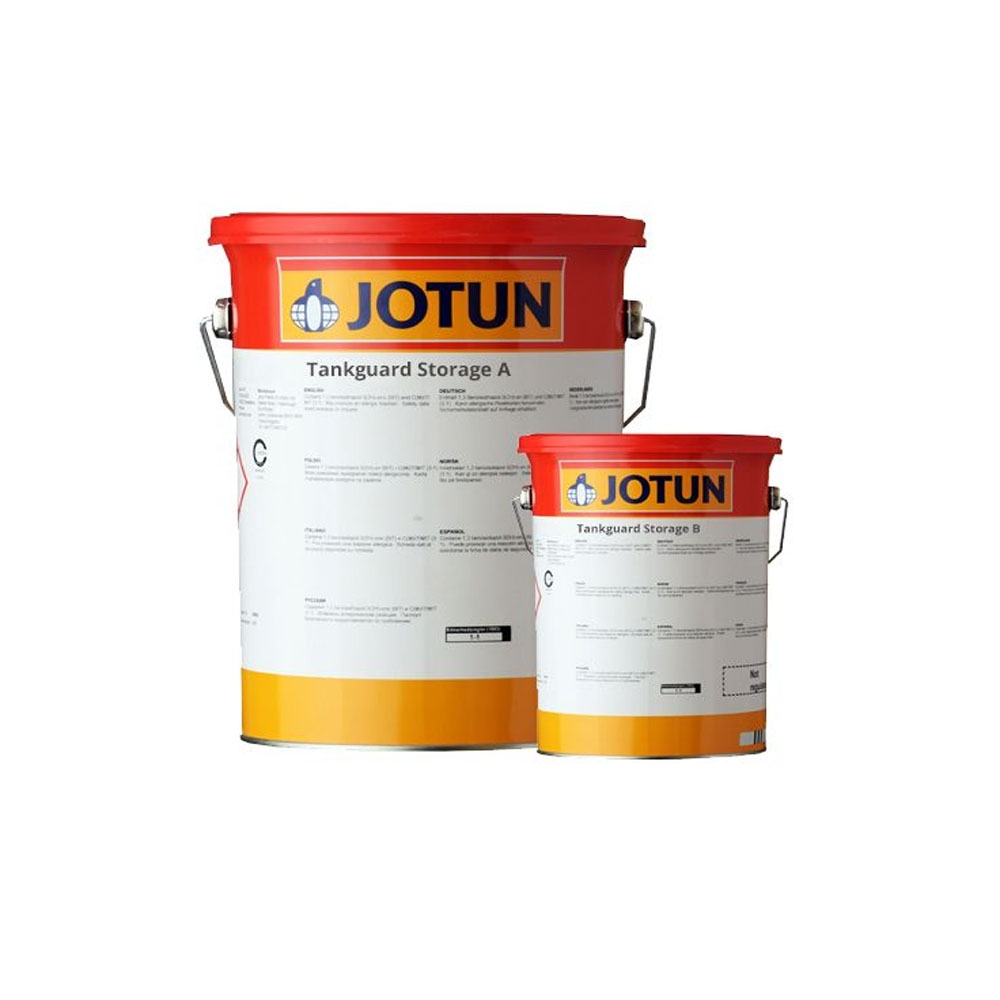

Jotun Tankguard Storage industrial paint is a 2-component phenolic/novolac epoxy paint cured with polyamine. This product is a paint specifically designed for tank interior surfaces with excellent chemical resistance. Can be used as a primer, midcoat or finish coat in atmospheric and immersed environments. Suitable as a coating on well prepared surfaces of carbon steel, concrete, galvanized steel and stainless steel.
Uses
Industrial: Specifically designed as a tank coating for offshore, onshore, buried tanks and pipelines, such as chemical, waste water, process water, concrete dykes, fire hydrants and drilling mud tanks. Can be used in pressurized tanks. This coating has excellent resistance to a wide range of high temperature media. Refer to the Industrial Chemical Resistance List.
Product information
|
Volume: |
Pack |
|
18.8 liters |
Jotun TankguardComp A: 16.3 lít |
|
Color |
Diluent/Cleaning Solvent |
|
Light Red |
Jotun Thinner No. 23 |
Product specifications
|
Characteristic |
Test/Standard |
Describe |
|
Solid volume |
ISO 3233 |
63 ±2% |
|
Gloss Level (GU 60°) |
ISO 2813 |
dim (0-35) |
|
Flash point |
ISO 3679 Method 1 |
28°C |
|
Proportion |
calculate |
1.6 kg/l |
|
VOC-US/Hong Kong |
US EPA method 24 (test) (CARB(SCM)2007, SCAQMD rule 1113, Hong Kong) |
335 g/l |
|
VOC-EU |
IED (2010/75/EU) (theoretical) |
337 g/l |
Paint film thickness per layer
Dry thickness: 100 – 200μm.
Wet thickness: 160 – 320μm.
Theoretical coverage rate: 6.3 – 3.2 m²/l.
Apply Jotun Tankguard Storage Light Grey paint
Surface preparation
To ensure long lasting adhesion of the next coat, the surface must be clean, dry and free from other contaminants.
|
Paint substrate |
Surface preparation |
|
|
Minimum |
Suggestion |
|
|
Carbon steel |
St 3 (ISO 8501-1) |
At 2½ (ISO 8501-1) |
|
Painted surface |
Compatible paint coat must be clean, dry and undamaged. |
Compatible paint coat must be clean, dry and undamaged. |
|
Stainless steel |
The surface must be sanded by machine or by hand, using sandpaper or abrasive discs with non-metallic grains to create surface roughness. |
Blast clean the surface using |
|
Corrugated galvanized. |
Surface must be clean, dry and have |
Glide blasting uses non-metallic grit to create a clean, evenly rough surface. |
|
Concrete |
Dry granules meet SSPC-SP |
Dry granules meet SSPC-SP |
Construction method
Spray form: Use an anaerobic paint sprayer (airless spray).
Brush: Recommended for small area and edge patching work. Take care to achieve specified dry film thickness.
Roller: Rollers should only be used for drain holes, technological holes, small pipes, etc.
Instruction data for paint sprayers
Nozzle size (inch/1000): 17 – 21.
Pressure at spray gun tip (minimum): 150 bar/2100 psi.
|
Surface temperature |
10°C |
15°C |
23°C |
30°C |
40°C |
|
Surface dry |
3pm |
12h |
4h |
3h |
2h |
|
Dry to walk on |
24h |
20h |
10h |
8h |
4h |
|
Dry to recoat, minimum |
24h |
20h |
10h |
7h |
4h |
|
Dry/cured for use |
21d |
14d |
7d |
4h |
3d |
Please refer to the Application Instructions (AG) table for information on maximum time between recoating of this product.
Drying and curing times are determined under controlled temperature conditions and relative humidity below 85%, and at the average dry film thickness of the product.
Surface dry: the dry stage where when lightly pressed on the paint film, it will not leave fingerprints or feel sticky.
Walkable dry: the minimum time before a paint film can withstand being walked on without leaving marks or damage.
Dry to overcoat, minimum: the shortest recommended time before the next coat can be applied.
Dry/cured for use: minimum time before the paint film can be completely exposed to the medium/use environment.
Time for paint to react after mixing the components together 20 minutes
Life time: 4 hours.
|
Heat resistant |
Temperature |
|
|
Continuous |
Go to the top |
|
|
Dry atmosphere |
200°C |
– |
|
Soak, sea water |
95 °C |
– |
|
Soak, crude oil |
120 °C |
– |
Maximum peak heat resistance time is 1 hour. The temperatures listed above relate to protection only. The aesthetic performance of the paint film will be affected at these temperatures.
Depending on the actual environment the paint system will be exposed to, a variety of primers and topcoats can be used in combination with this product. Please contact your nearest Jotun dealer for further details.
Previous coat: phenolic/novolac epoxy.
Subsequent coat: phenolic/novolac epoxy
– Storage: This product must be stored according to the safety regulations of each country. Store the product in a dry, cool place, combined with good ventilation, away from heat sources and fire-generating equipment. The product container must be tightly closed. Transport carefully.
Tankguard Storage Comp A: 24 months.
Tankguard Storage Comp B: 24 months.
Tankguard Storage comp A |
||
|
INFORMATION ON INGREDIENTS |
||
|
Name of hazardous ingredient |
CAS number |
% |
|
epoxy resin (MW≤ 700) xylene Phenol, polymer with formaldehyde, glycidyl ether butane-1-ol ethylbenzene |
1675-54-3 1330-20-7 28064-14-4 71-36-3 100-41-4
|
≥10 – ≤17 ≤12 ≤7.5 ≤7 ≤5 |
To the supplier's current knowledge and at the applicable concentration levels, no additional ingredients classified as hazardous to health or the environment need to be reported in this section.
|
IDENTIFYING THE HAZARDOUS PROPERTIES OF CHEMICAL CHEMICALS |
Danger rating:
FLAMMABLE LIQUID – Category 3
SKIN Irritation – Category 2
SERIOUS INJURY – Category 1
SKIN SENSITIVITY – Category 1 WATER
TOXICITY (LONG-TERM) – Category 3
Tankguard Storage comp B |
|||
|
INFORMATION ON INGREDIENTS |
|||
|
Name of hazardous ingredient |
CAS number |
|
% |
|
formaldehyde, polymer with benzenamine, hydrogenated benzyl alcohol Formaldehyde, oligomeric reaction products with m-phenylenebis(methylamine) 4,4′-methylenebis(cyclohexylamine) salicylic acid
|
135108-88-2
100-51-6 57214-10-5
1477-55-0 1761-71-3 69-72-7 |
Unspecifed
C7-H8-O (C8H12N2.C6H6O. C8-H12-N2 C13-H26-N2 C7-H6-O3 |
≥25 – ≤50
≥25 – ≤48 ≤10
≤6.8 ≤5 <3 |
To the supplier's current knowledge and at the applicable concentration levels, no additional ingredients classified as hazardous to health or the environment need to be reported in this section.
|
IDENTIFYING THE HAZARDOUS PROPERTIES OF CHEMICAL CHEMICALS |
Danger rating:
ACUTE TOXICITY (oral) – Category 4
SKIN CORROSION – Category 1B
SERIOUS INJURY – Category 1
SKIN SENSITIVITY – Category 1
SYSTEMIC/SPECIFIC TARGET ORGAN TOXICITY – REPEAT EXPOSURE (kidney) – Category 2
WATER TOXICITY (GRADE) – Category 2
WATER TOXICITY (LASTING) – Category 2
This product should only be applied by a specialist contractor. The contractor must have the training, experience, ability and equipment to apply this product correctly and in accordance with Jotun's technical procedures. The contractor must wear suitable personal protective equipment when using this product. This guidance is based on the current knowledge of the product. Any changes to suit site conditions must be approved by the Jotun Representative before proceeding.
Please follow the precautions on the paint container label. Use in a well-ventilated area. Do not breathe paint dust. Avoid direct contact with skin. In case of skin contact, wash immediately with a cleaning solution, soap and water. Rinse eyes with water and seek medical attention immediately.
When the product is an anti-rust or anti-fouling primer, the paint film may vary slightly in color from batch to batch. These products may fade and chalk when exposed to sunlight and outdoor weather.
